Products Details
Suzhou xingcheng aquarium technology co., ltd...Is a maker of customized transparent cast flat acrylic sheet of aquarium wall
Customized transparent cast flat acrylic sheet of aquarium wall
Flat acrylic sheet size: 5200mm x 2400mm, 8000mm x 3000mm by customized.
Flat acrylic sheet Thickness: 50mm, 280mm, 380mm and so on from 20mm to 500mm.
Flat acrylic sheet material: 100% original Lucite
Flat acrylic sheet Transparency: Above 92%
We make customized transparent cast flat acrylic sheet of aquarium wall according to customers' drawing.

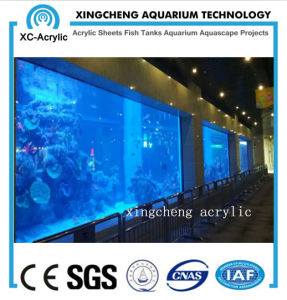

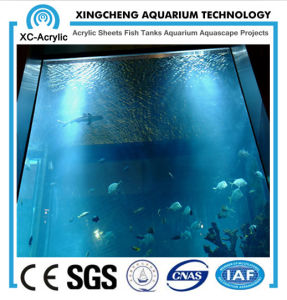

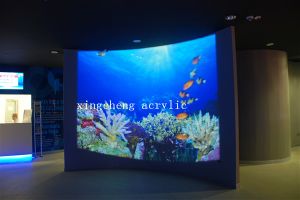

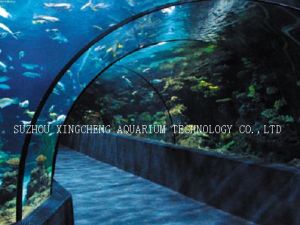

The photos as follows is our flat acrylic sheet aquarium wall,
Our services including design drawing, flat acrylic sheet processing, installaton, life support system, landscaping and so on.

1. What is pmma/acrylic?
Pmma sheet is named acrylic sheet, plexiglass or Organic glass sheet. The Chemical name is Polymethy methacrylate. Acrylic holds the physical properties among plastics due to the excellent transparency which sparkling &transparent like crystal, it is praised as "Queen of Plastics" and is very delighted by the processors.


1. Does acrylic sheet will turn yellow in sunshine?
No, acrylic sheet from our factory should be made with UV. It can't to turn yellow in sunshine.
2. Warranty period for acrylic sheet?
We are committed to acrylic sheet five year warranty, not artificial not to damage.
3. Customers can personally inspect acrylic?
Yes, we welcome customers visit our factory to check acrylic production.
PROPERTIES VALUE Method
ASTM
VALUE Method
DIN
Density (specific weight) 1,19 g/cm 3 D 792 1,19 g/cm 3 53479
Modulus of elasticity 32.000 Kg./cm 2 D 790 3200 N/mm 2 53457
Tensile Strenght 740 kg/cm 2 D 638 74 kg/cm 2 53455
Flexural Strenght 1200 kg/cm 2 D 790 120 kg/cm 2 53452
Elongation at break 3,0 % D 638 3,0 % 53455
Impact Strenght (Izod) 2,0 kg/cm D 256 2,0 kg/m 2 53453
Impact Strenght (Charpy) 25 kg/cm D 256 27 kg/m 2 53453
Rockwell Hardness M 100 D 785 / /
Ball Drop H98/30 / / 200 N/mm 2 53453

            THERMAL PROPERTIES

PROPERTIES VALUE Method
ASTM
VALUE Method
DIN
Coefficient of thermal conductivity 5,0 10 -4 cal/cm s ° C C 177 0,19 W/m°C 52612
Deflection temperat.- 1,8 N/mm 2 105 °C D 648 105 °C 53461
Softenig Point (Vicat) > 115 °C D 1525 > 115 °C 53460
Coef. Linear Thermal Expantion 7,5 10 -5 1/°C D 696 75 10 -4 1/°C VDE0304/1
Specific Heat 0,35 cal/g°C / / /

      ELECTRIC PROPERTIES

PROPERTIES VALUE Method
ASTM
VALUE Method
DIN
Dielectric Strength 20 kV/mm D 149 20 kV/mm 53461
Volume Resistivity 1 10 15 Ohm/cm D 257 / /
Surface Resistivity 1 10 14 Ohm D 257 1 10 14 Ohm 53482
Transversal Resistivity > 10 15 Ohm/cm D 257
Dielectric Constant (50 Hz) 3,5 D 150 3,5 53483
Power Factor (50 Hz) 0,05 D 150 0,06 53483


            OPTICAL PROPERTIES

PROPERTIES VALUE Method
ASTM
VALUE Method
DIN
Refractive Index n 20 D 1,49 D 542 1,49 53491
Light Transmittance 92% D 1003/A 92 % 5036
Turbidity (Haze) 0,5% D 1003/A / /

            CHEMICAL PROPERTIES

PROPERTIES VALUE METHOD
Medium molecular weight 800 – 1000 10 3 uma viscous
Resistance to acids good /
Resistance to bases good /
Resistance to chlorous solvents ( methylene chloride, chloroform, trichloroethylene etc.) low /
Resistance to non chlorous solvents (acetone,alcohol, petrol, etc.) medium /

            REACTION TO FIRE

PROPERTIES VALUE METHOD
Flame propagation 22 – 28 mm/min. ASTM D635/63
Igniting T. 280 – 300 °C ASTM D 93
Autoigniting T. 425 °C DIN 51794
Calorific power 6600 kcal/kg /
Oxygen index 18 ASTM D28/63
Flammability class B2 DIN 4102
Smoke density (Flamming) Dm 50 NBS

            WATER AND GAS ABSORPTION

PROPERTIES VALUE METHOD
Water absorption rate 30 mg ISO 62, m.l
Max % increase of weight after water immersion 2,1% ISO 62, m.l
Coef.of steam permeability 2,3 10 -10 g/cmPa /
Coef.of N2 permeability 4,5 10 -15 g/cmPa /
Coef.of O2 permeability 2,0 10 -14 g/cmPa /
Coef.of CO2 permeability 1,1 10 -13 g/cmPa /
Coef. of air permeability 8,3 10 -15 g/cmPa /
